Overview
Featured
Overview
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV98CT |
| Aspiration | Turbo |
| Displacement, ltr (Inches³) | 3.3 (203) |
| Rated Speed, rpm | 2500 |
| Engine Output – Net, kW (hp) | 52.5 (70) |
| Engine Output – Gross, kW (hp) | 54.8 (74) |
| Torque, Nm (lbf / ft) | 280 (207) |
| Track Shoe Width, mm (inches) | 320 (12.6) |
| Length – Foundry Bucket, mm (inches) | 3460 (136.3) |
| Length – No Bucket, mm (inches) | 2850 (112.3) |
| Height – Top Of Cab, mm (inches) | 2060 (81.1) |
| Width – No Bucket, mm (inches) | 1820 (71.5) |
| Ground Clearance, mm (inches) | 240 (9.3) |
| Rear Departure Angle, Degrees | 30.5 |
| Height to Hinge Pin, mm (inches) | 3200 (126.1) |
| Dump Angle, Degrees | 41 |
| Dump Height – Maximum Foundry, mm (inches) | 2590 (102.1) |
| Rollback – Ground Level, Degrees | 34 |
| Fuel Tank, ltr (gallons (US) | 79 (21) |
| Rated Operating Capacity – Foundry, kg (lbs) | 1176 (2590) |
| Tipping Load – Foundry, kg (lbs) | 3360 (7400) |
| Ground Bearing Pressure – Foundry, kPa (PSI) | 39.3 (5.7) |
| Speed – Maximum, kph (mph) | 13.2 (8.2) |
| Breakout – Lift Foundry, kN (lbf) | 23.3 (5250) |
| Breakout – Bucket Foundry, kN (lbf) | 38.9 (8750) |
| Hydraulic Power, kW (hp) | 30.617 (41) |
| Operating Weight – Foundry, kg (lbs) | 4313 (9500) |
Featured

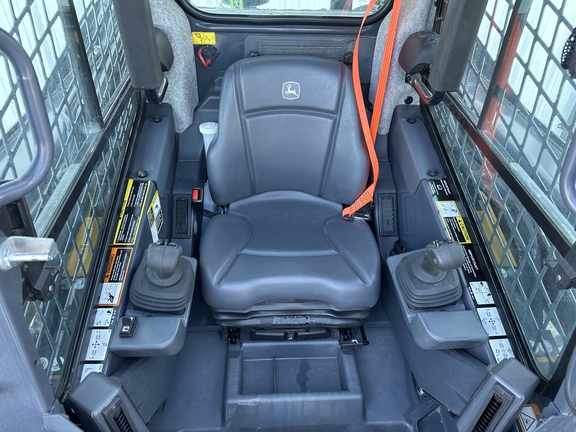

- Operators Station: Cab w/ AC
- Operators Station: EH Joystick Controls
- Operators Station: Air Ride Seat
- Operators Station: Hi-Flo
- Powertrain: 2 Speed
- Booms: Self-Leveling
- Tracks: Narrow Rubber Tracks
- Tracks: Standard Rubber Tracks

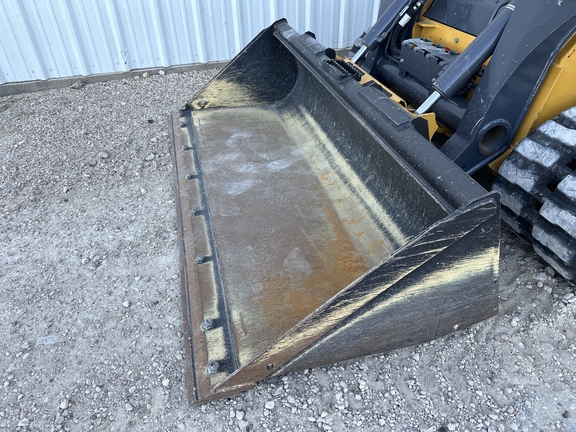

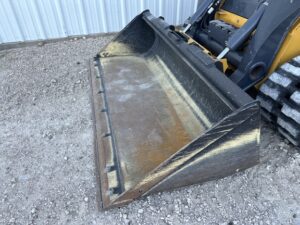

- Buckets: 78″ Bucket
