| Description | Undercarriage Type – Hi Mount Drive Motor Lift Geometry – Vertical Cab Type – Swing Up – Meshed |
| Driveline | Engine Manufacturer – FPT Engine Model – F5B FL413 D C005 Number Of Cylinders – 4 Aspiration – Turbo. Aftercooled |
Tipping Load lb– 12500 Operating Capacity lb – 4340 Ground Bearing Pressure psi – 6.1 Speed – Maximum mph – 8.7 Breakout – Bucket Foundry lbf – 12907 Controls – Loader – Joystick – Electro-Hydraulic Pump Flow gallon (US)/min – 10.5 Pump Flow – Option gallon (US)/min – 11 System Pressure psi – 3450 System Pressure – Option psi – 3450 | |
| Dimensions | Width – No Bucket in – 78.3 Height – Top Of Cab in – 84.6 Ground Clearance in – 66 Rear Departure Angle ° – 38 Height To Hinge Pin in – 140.2 Dump Angle ° – 46.1 Dump Height – Maximum in – 109 Reach – Max Dump Height in – 39 Operating Weight lb – 16100 |
Gross HP | 114 HP (85 kW) |
Operating Weight | 16,100 lbs (7311 kg) |
Lift Type | Vertical Lift |

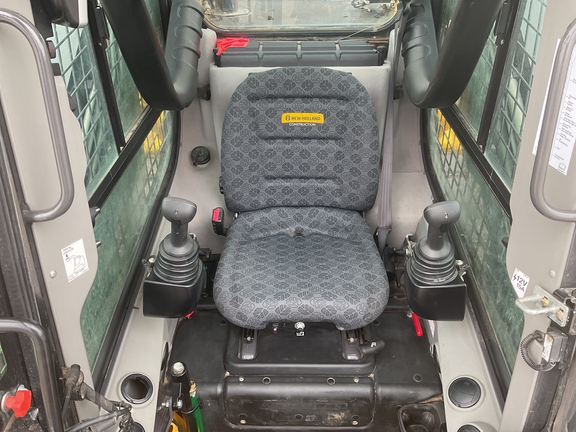

- Operators Station: Cab w/ AC
- Operators Station: Hi-Flo
- Tracks: Rubber Tracks

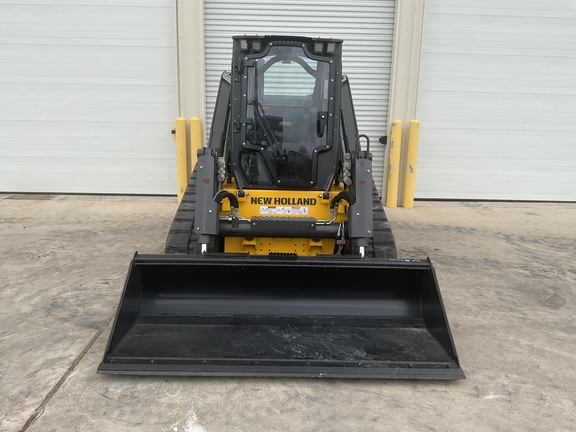

- Buckets: 84″ Bucket
